SkillAbove CODDIWOMPLE Pro: A Deep Dive Into One of MilTech RV’s Diagnostic Tools

Why This Tool Matters

One of the most difficult parts of RV troubleshooting is determining whether a failure is being caused by the RV’s controller, wiring, power supply, motor, actuator, jack, hydraulic valve, or the mechanical system itself.

The SkillAbove CODDIWOMPLE helps separate those areas by allowing compatible components to be operated independently from the RV’s normal control system.

For a mobile RV technician, that can mean less guessing, faster diagnosis, fewer unnecessary parts replacements, and better documentation of what is actually happening.

What Is the SkillAbove CODDIWOMPLE?

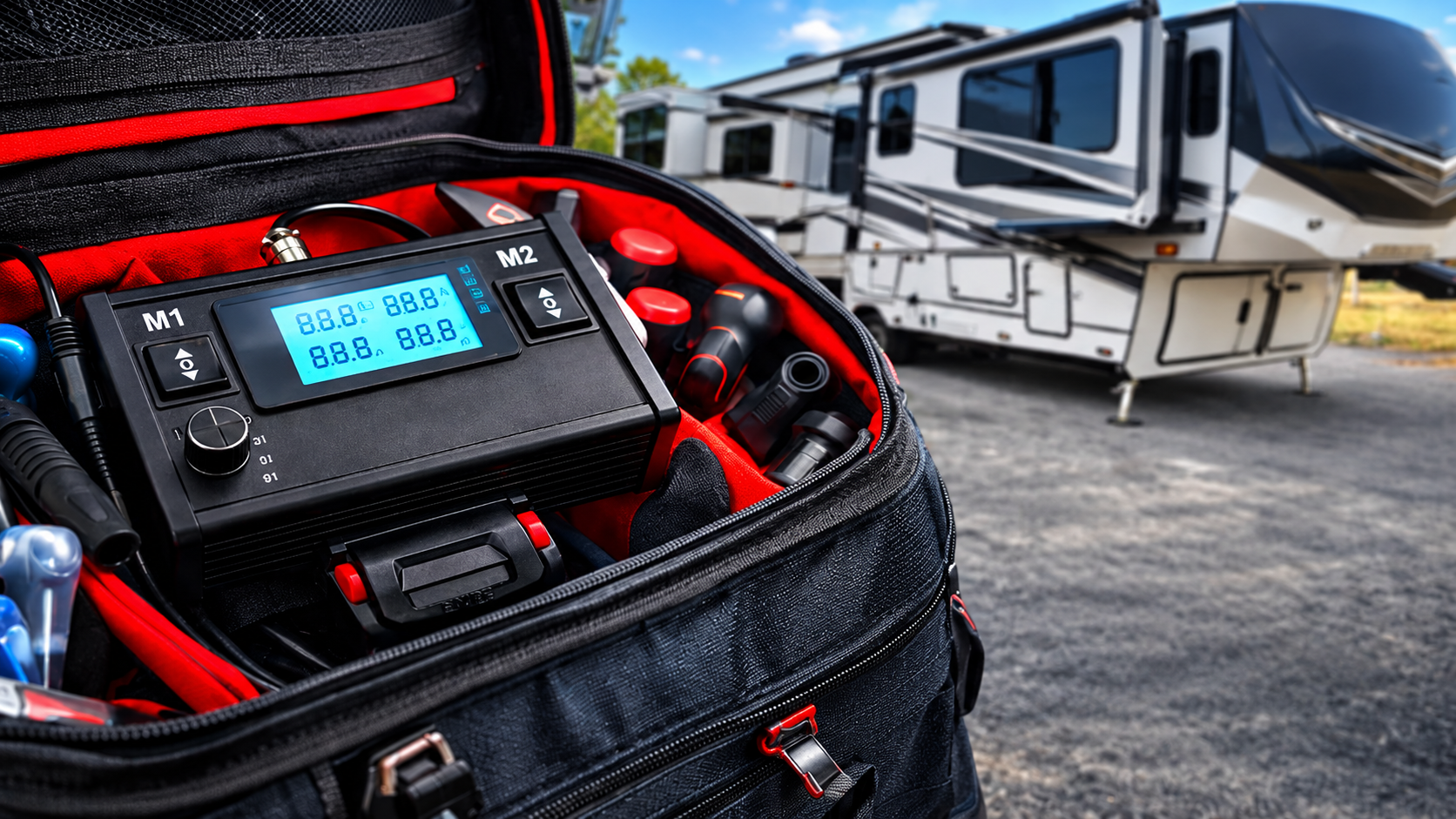

The CODDIWOMPLE is a portable RV diagnostic and override tool designed to directly operate compatible 12-volt motors, actuators, hydraulic components, and other RV equipment while allowing the technician to observe electrical behavior.

Instead of relying entirely on the RV’s original control circuit, the tool allows the technician to isolate a component and test it independently.

That allows the technician to answer an important diagnostic question:

Does the problem remain when the RV’s controller and normal wiring are removed from the equation?

Why MilTech RV Uses the CODDIWOMPLE Pro

At MilTech RV Repair & Inspection, we use the CODDIWOMPLE Pro because our mobile diagnostic work includes a wide variety of slide, leveling, hydraulic, awning, step, and 12-volt systems.

The Pro configuration provides broader adapter coverage than the smaller kits and is better suited for a technician who works across several manufacturers and system types.

Depending on the installed adapter and system configuration, the CODDIWOMPLE platform can assist with diagnosis of systems such as:

• Schwintek slide systems
• SlimRack slide systems
• Ground Control 3.0 electric leveling
• Lippert Level-Up hydraulic systems
• Titan / Leveler 5 systems
• Power Gear slide and leveling systems
• Equalizer leveling systems
• Kwikee electric steps
• BAL ExactSlide systems
• RV awnings
• Hydraulic valve and cartridge circuits
• Compatible reversing-polarity motors and actuators

The Real Value: Diagnostic Isolation

The biggest advantage of the CODDIWOMPLE is not simply that it can make a motor move.

Its real value is helping the technician isolate the failed section of a system.

For example, if a slide motor operates normally when powered independently through the CODDIWOMPLE, the diagnosis may shift toward:

• Controller output
• Wiring
• Connectors
• Power supply
• Ground connections
• Control logic
• Sensor or feedback circuits

If the motor still performs poorly when independently powered, the technician may instead investigate:

• The motor itself
• Gearbox condition
• Mechanical resistance
• Slide alignment
• Jack or actuator problems
• Hydraulic or mechanical loading

Schwintek and SlimRack Slide Diagnostics

Slide systems are one of the areas where this tool can be especially useful.

A customer may report that a slide:

• Moves only a few inches
• Stops during travel
• Moves unevenly
• Racks from side to side
• Produces a controller fault
• Runs intermittently

A technician can compare the behavior of individual motors and look for differences in movement, electrical load, and mechanical resistance.

One motor working harder than the other does not automatically prove that the motor is defective. It may indicate binding, room misalignment, track resistance, gearbox problems, or other mechanical loading.

The CODDIWOMPLE provides another piece of evidence that helps narrow down the actual cause.

Ground Control and Electric Leveling Diagnostics

Consider a leveling system where one jack does not operate.

Instead of immediately replacing the jack or controller, the technician can isolate the suspect motor and test whether the jack assembly is capable of operating from an independent power source.

If the jack operates normally when directly tested, the next steps may focus on:

• Controller output
• Harness condition
• Connectors
• Voltage drop
• Power and ground circuits

If the motor runs but the jack itself does not move, attention may shift toward the gearbox, coupling, or mechanical jack assembly.

Hydraulic Leveling and Slide Systems

Hydraulic systems introduce another layer of troubleshooting because the problem may be electrical, hydraulic, or mechanical.

Possible fault areas can include:

• Pump motor
• Pump contactor
• Controller
• Valve coil
• Hydraulic cartridge
• Fluid level
• Hydraulic pressure
• Hoses
• Cylinders
• Mechanical loading

The CODDIWOMPLE can help separate electrical command problems from hydraulic problems by allowing compatible pumps or valve circuits to be tested independently.

A valve coil that electrically activates but produces no expected hydraulic movement may require further diagnosis of the cartridge or hydraulic circuit rather than continued electrical testing.

Watch the CODDIWOMPLE Pro in Action

This video gives a closer look at the SkillAbove CODDIWOMPLE Pro and how it fits into real-world RV diagnostic work.

Awnings and Other Reversing-Polarity Motors

RV awnings are another good example of diagnostic isolation.

If an awning motor operates normally when directly powered in both directions, the technician can shift attention toward the switch, control module, wiring, relay, or other control-side components.

If the motor operates slowly, stalls, or shows signs of heavy loading, the problem may instead be related to the motor, gearbox, roller, awning arms, or mechanical resistance.

Kwikee Step Diagnostics

The CODDIWOMPLE can also be useful when diagnosing compatible electric RV steps.

At MilTech RV, we may combine direct component testing with dedicated step-system diagnostic tools to separate control-side problems from motor or mechanical problems.

This can help determine whether the fault involves:

• Door input
• Ignition input
• Step controller
• Motor
• Gearbox
• Linkage
• Power or ground circuits

Why Voltage and Amperage Matter

A component can show normal voltage when sitting idle and still fail under load.

That is why dynamic testing is important.

Current draw can also provide useful information about how hard a motor is working.

Examples of useful observations include:

• One slide motor consistently drawing more current than the other
• Current rising sharply at one point during travel
• A motor stalling under load
• Voltage collapsing when a motor starts
• A component operating normally on an independent power source but poorly through the RV wiring

These readings do not automatically identify the failed part, but they can help determine where additional testing should be focused.

What the CODDIWOMPLE Does Not Replace

No single diagnostic tool replaces proper troubleshooting.

The CODDIWOMPLE does not replace:

• A digital multimeter
• A clamp meter
• An oscilloscope
• A hydraulic pressure gauge
• OEM service manuals and wiring diagrams
• CAN-bus or communication diagnostic equipment
• Mechanical inspection
• Technician experience and judgment

Is the CODDIWOMPLE Pro Worth It?

For an RV owner working on one RV, the CODDIWOMPLE Pro may provide more capability than is realistically needed.

For a professional technician who regularly works on slide systems, leveling systems, hydraulic systems, steps, awnings, and related 12-volt equipment, the value can be much greater.

The benefit comes from reducing diagnostic time and improving fault isolation.

At MilTech RV, we look at professional diagnostic equipment using several questions:

• Does it help diagnose something faster?
• Does it reduce unnecessary parts replacement?
• Does it help us take on jobs we might otherwise decline?
• Does it reduce callbacks?
• Does it make our diagnosis more defensible?
• Does it earn its place on the service truck?

For the type of work we perform, the CODDIWOMPLE Pro checks several of those boxes.

SkillAbove Product Information

For current product options, specifications, adapters, pricing, and availability, visit SkillAbove directly.

Manufacturer:
SkillAbove INC.

Product Page:
https://skillabove.com/collections/coddi-kits

CODDIWOMPLE User Manual:
View the CODDIWOMPLE User Manual

Email:
Info@rvtesters.com

Mailing Address:
SkillAbove INC.
220 County Road 482
Stephenville, TX 76401
United States

Product availability, adapter packages, compatibility, pricing, and specifications may change. Confirm current information directly with SkillAbove before purchasing.

Final Thoughts

The SkillAbove CODDIWOMPLE Pro is not a magic diagnostic box.

Its value comes from helping a technician answer one very important question:

Is the failure in the RV’s control system, or is it in the component and mechanism being controlled?

When used together with proper electrical testing, mechanical inspection, OEM service information, and technician experience, that ability can make RV troubleshooting faster, more organized, and easier to document.

For MilTech RV Repair & Inspection, that is what makes the CODDIWOMPLE Pro a valuable diagnostic tool rather than simply another piece of equipment on the truck.
