MILTECH RV TOOL REVIEW
SkillAbove Peacemaker: Is This RV A/C Diagnostic Tool Worth It?
A closer look at how the SkillAbove Peacemaker can help an RV technician isolate rooftop air-conditioner, heat-pump, thermostat, and control-system problems faster.
One of the most common customer complaints an RV technician hears is simple: “My air conditioner won’t come on.”
Unfortunately, the diagnosis is not always simple.
The failure could be inside the rooftop air conditioner, or it could be somewhere in the thermostat, control board, communication wiring, sensors, connections, power supply, fan circuit, compressor circuit, or heat-pump controls.

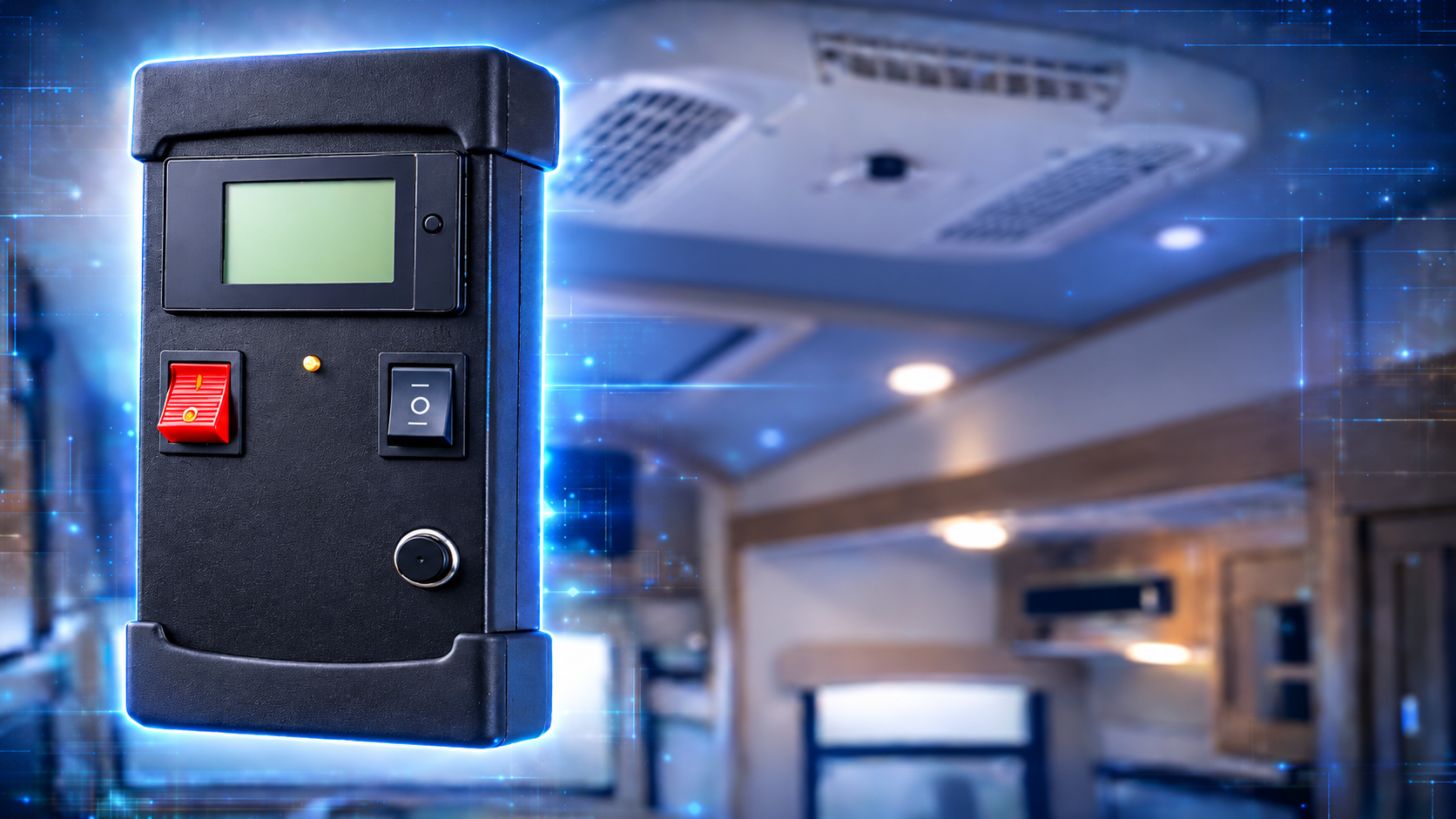

That is where the SkillAbove Peacemaker RV A/C and Heat Pump Tester becomes interesting.
At MilTech RV Repair & Inspection, we look at specialized tools using a simple rule: a tool should solve a real problem, save diagnostic time, improve confidence in the diagnosis, or help us provide better service to the RV owner.
After diagnosing multiple rooftop A/C systems, the Peacemaker caught our attention because it is designed specifically to help separate an RV control-system problem from a rooftop A/C problem.
What Does the SkillAbove Peacemaker Actually Do?
The easiest way to describe the Peacemaker is that it gives the technician the ability to operate rooftop HVAC components independently of the RV's normal thermostat and control system.
Instead of depending on the customer's thermostat and control board to command the rooftop unit, the technician can use the Peacemaker to independently evaluate major HVAC functions.
- Low-speed fan operation
- High-speed fan operation
- Compressor operation
- Heat-pump operation on compatible units
- Reversing-valve operation
- Electric heat-strip operation where equipped
- Operating voltage
- Current draw during operation
This can make it much easier to answer an important diagnostic question:
Why That Matters During an RV A/C Diagnosis
Imagine arriving at an RV where the customer says the air conditioner will not start.
Without isolating the system, you may need to work through several possible failure points:
- Wall thermostat
- Communication wiring
- Control box
- Control board
- Freeze sensor
- Temperature sensors
- Fan circuit
- Capacitor
- Compressor
- Power supply
With the Peacemaker, the technician can remove much of the normal control system from the equation and see whether the rooftop equipment itself will operate.
If the rooftop unit runs correctly with the Peacemaker but does not operate normally from the RV's controls, the investigation can move back toward the thermostat and control system.
If the rooftop component still will not operate when commanded independently, the diagnosis can remain focused on the rooftop unit.
Peacemaker + The Light Bulb: Testing Both Sides of the System
One reason the Peacemaker is particularly interesting to us is because it works well alongside another SkillAbove diagnostic tool: The Light Bulb HVAC Control Box Tester.
These tools approach the HVAC system from opposite directions.
| Tool | Primary Diagnostic Purpose |
|---|---|
| The Light Bulb | Helps verify commands and functions coming from the HVAC control-box side. |
| The Peacemaker | Helps determine whether the rooftop HVAC components will operate independently. |
Together, the two tools can create a logical diagnostic path: verify the command, then verify the component.
Example: The Compressor Will Not Start
Suppose the RV thermostat is calling for cooling, but the compressor does not start.
If testing confirms the control side is sending the compressor command, the next question becomes: will the compressor circuit operate independently?
The Peacemaker can help answer that question.
If the compressor operates correctly with the Peacemaker, the technician now has strong reason to investigate the normal control system.
If the compressor still does not operate properly, the technician can begin looking deeper into areas such as:
- Capacitor condition
- Start components
- Compressor windings
- Voltage drop
- Connections
- Overload protection
- Mechanical compressor failure
Watch Our SkillAbove Peacemaker Video
See the Peacemaker and our thoughts on using this type of diagnostic tool in professional RV HVAC troubleshooting.
Can the Peacemaker Save Diagnostic Time?
For a professional technician, this may be the strongest reason to consider the Peacemaker.
A technician can perform many of these tests manually using a multimeter, clamp meter, wiring diagrams, test leads, and manufacturer troubleshooting procedures.
The Peacemaker does not eliminate the need to understand HVAC troubleshooting. Instead, it provides a purpose-built way to perform several isolation tests more quickly and consistently.
Saving even 20 to 30 minutes on the right diagnostic call can add up over multiple service calls.
Our Real-World Consideration
MilTech RV diagnosed approximately five rooftop A/C systems within a six-month period. At that level of use, a specialized diagnostic tool begins to make more financial sense because it is addressing work we are already performing rather than a hypothetical future service.
What the Peacemaker Does NOT Do
This is important.
The Peacemaker is not a complete automatic A/C diagnostic machine.
It does not automatically tell the technician:
- The refrigerant charge is correct or incorrect
- A capacitor is outside its microfarad specification
- A compressor winding has failed
- The duct system is leaking
- The evaporator has insufficient airflow
- The sealed system contains a restriction
- A coil is excessively dirty
The technician still needs proper meters, temperature measurements, manufacturer specifications, and a solid understanding of refrigeration and electrical troubleshooting.
How We Would Use the Peacemaker During an RV Service Call
- Reproduce the customer's complaint. Verify what the system is actually doing before disconnecting components.
- Verify the power source. Check voltage, breakers, wiring, connections, and obvious electrical problems.
- Evaluate the control side. Determine whether the thermostat and control box are issuing the proper commands.
- Use the Peacemaker to isolate the rooftop unit. Independently evaluate the fan, compressor, heat-pump, and applicable heat-strip functions.
- Perform component-level testing. Use meters and manufacturer procedures to determine why a component is not operating correctly.
- Reconnect and verify normal operation. Always return the system to normal configuration and confirm the repair.
Better Diagnostic Confidence
Another benefit is the ability to explain the diagnosis clearly to an RV owner.
For example, a technician may be able to demonstrate:
“Your RV control system is requesting cooling correctly. We independently tested the rooftop unit, and the compressor still failed to start.”
Or the exact opposite:
“When we independently controlled the rooftop air conditioner, the compressor and fan operated normally. That tells us the rooftop equipment itself is capable of running, so we need to investigate the RV's controls.”
That makes an expensive repair recommendation easier to explain and helps reduce unnecessary parts replacement.
Is the SkillAbove Peacemaker Worth Buying?
That depends primarily on how often you diagnose RV rooftop air conditioners.
| A/C Diagnostic Frequency | Our View |
|---|---|
| 1–2 times per year | Probably difficult to justify strictly on financial return. |
| 5–10 times per year | Starts becoming a practical professional diagnostic tool. |
| 10+ times per year | The potential time savings and improved diagnostic workflow become much easier to justify. |
SkillAbove Product Manuals
Before using specialized diagnostic equipment, technicians should read and understand the manufacturer's operating instructions, safety warnings, connection requirements, and limitations.
SkillAbove Product Information
For current product availability, adapter compatibility, pricing, and technical questions, contact SkillAbove directly.
SkillAbove INC.
220 County Road 482
Stephenville, TX 76401
United States
Email: Info@rvtesters.com
Final Thoughts From MilTech RV
The SkillAbove Peacemaker does not replace proper HVAC troubleshooting knowledge, and it does not eliminate the need for traditional meters and manufacturer service information.
What it can provide is a faster, cleaner way to isolate whether a rooftop HVAC problem belongs on the control side of the system or within the rooftop equipment itself.
For an RV owner who performs an occasional repair, this may be more tool than necessary.
For a professional RV technician who regularly diagnoses rooftop A/C systems, the Peacemaker can become a valuable part of a structured diagnostic process.
Our philosophy at MilTech RV: Don't just replace parts. Diagnose the problem.
